AFTC 8502P Transparent Tape

MATERIAL/SUBSTRATE:
Uncoated Acrylic Foam

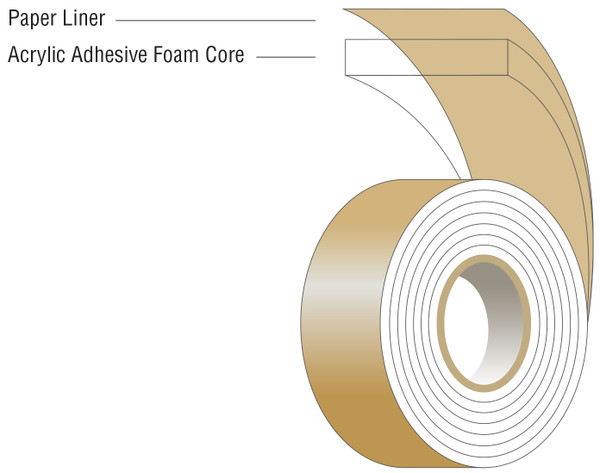

CORE:
Acrylic Adhesive Foam Core
LINER:
Paper Liner
DENSITY:
56 lb/ft3
MINIMUM TEMPERATURE RESISTANCE:
-40°F
SHORT-TERM TEMPERATURE RESISTANCE:
320°F
LONG-TERM TEMPERATURE RESISTANCE:
212°F
90° PEEL ADHESION [ASTM D3330]:
15 lb/in
DYNAMIC SHEAR STRENGTH [ASTM D1002]:
86 lb/in2
TENSILE STRENGTH [ASTM D897]:
108 lb/in2
STATIC SHEAR STRENGTH @ 72°F [ASTM D3654]:
1,000 grams
STATIC SHEAR STRENGTH @ 150°F [ASTM D3654]:
500 grams
STATIC SHEAR STRENGTH @ 200°F [ASTM D3654]:
500 grams
CELL STRUCTURE:
Closed Cell
SOLVENT RESISTANCE:
Excellent
UV RESISTANCE:
Excellent

Product Overview

This thin tape is designed to adhere to various surfaces. The thin adhesive film allows a good adhesive performance on a variety of molded parts. This series is in many situations virtually invisible and allow the usage of light weight, thin and small materials in many shapes and sizes. The 8502P is recommended in situations where the bond needs to be invisible.

Typical Applications:
• Glass
• Glass/epoxy
• Stainless steel
• Galvanized steel
• Anodized aluminum
• Coated aluminum

Product Features & Benefits:
• Excellent UV, aging, solvent and high temperature resistance (+100 °C to +160 ° Celsius)
