80 Durometer Solid PVC with Plasticizer Block Film 1/8" Tape

Only %1 left
SKU
T-80DSPVCPF1008

Technical Datasheet

80DSPVCF1008

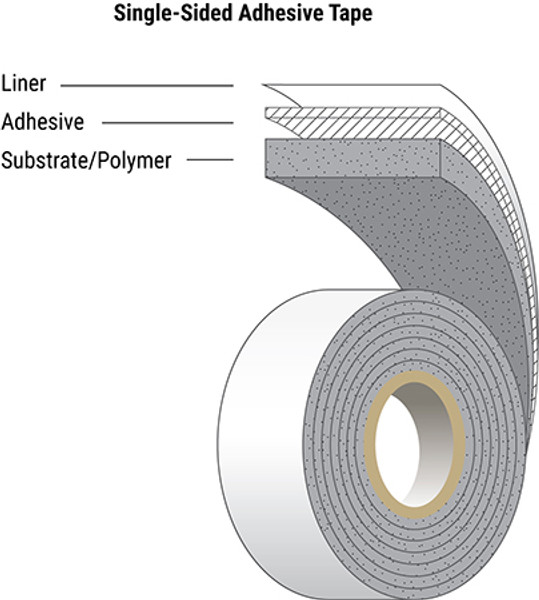

Solid polyvinyl chloride (PVC) mechanically bonded to a polymeric film barrier on one side, which eliminates plasticizer migration when acrylic pressure sensitive adhesive is applied, helping to maintain a long-term bond to many types of substrates.

Features & Benefits:

Adhesive has excellent peel and shear values.
Inexpensive alternative to commercial grade neoprene, rubber and EPDM setting blocks
Acrylic adhesive gives great high and low temperature and weather resistance
PVC compound, can be recycled with sash components
Low/no skid

Typical Applications:

Livestock trailers (no skid), dock ramps, and aluminum dock vibration damping
Aluminum dock decking spacer tape

More Information

More Information
Test Methods PSTC-1, ASTM D2240, SYNTAC TM, ASTM D412
Durometer / Hardness (Shore A) 75
Adhesion / Peel Value 6.25 lb/in
Adhesion Range 5-9.99 lb/in
Minimum Temperature Range -20°F
Maximum Temperature Range 200°F
Tensile Strength 250 lb/in2
Loop Tack 109 oz/in
Durometer Shore A (Range) 60+
Environmental and Chemical Properties Acid Resistance, Alcohol Resistance, Aldehydes Resistance, Detergent Solutions Resistance, Mineral Oil resistance, Reducing Agents resistance, Resistance to Aliphatic Hydrocarbon Fluids
Loop Tack (Range) 30+ oz/in
Minimum Temperature (Range) -15 - -29°F
Tensile Strength (Range) 250-499.99 lb/in2
