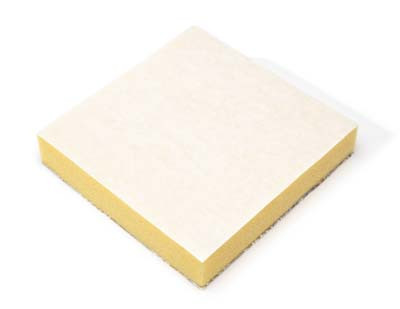

Polyimide Foam Strips with Rubber Adhesive

MATERIAL / SUBSTRATE:
Polyimide Foam
DENSITY [ASTM D3574 (TEST A), ISO 845]:
0.44 lb/ft3
THERMAL CONDUCTIVITY @ 75°F [ASTM C518]:
0.32 btu/(h·ft2·°F)
SMOKE DEVELOPED INDEX FLAMING & NON-FLAMING MODES [ASTM E662]:
<5
NOISE REDUCTION COEFFICIENT (NRC), 1 IN [ASTM C423, ASTM E795, MOUNTING A]:
0.75
PEEL ADHESION [PSTC-101]:
96 oz/inch
OFFGASSING/OUTGASSING TMI [ASTM E595]:
< 1.0 %
OFFGASING/OUTGASSING CVCM [ASTM E595]:
< 0.1 %

Product Overview

Polyimide is a lightweight, non-wicking, thermal and acoustic insulation foam utilized where low fire, toxicity and smoke generation are critical. The rubber PSA is designed for difficult bonding applications and has excellent quick stick and shear properties for permanent bonding applications on foams, plastics, metals and composite materials subjected to a broad range of temperatures.

Typical Applications:
• Aircraft and aerospace applications including aircraft fuselage, under floor, ECS ducts and equipment
• Oven Insulation, vent duct insulation and many more where temperature resistance is critical
• Great for sound damping
• Excellent acoustic absorption

Product Features & Benefits:
• Excellent long-term stability under humid conditions and after temperature cycling
• Formaldehyde free
• Easily die-cut
• Emits virtually no smoke or toxic-by-products when exposed to open flame
• Lightweight yet durable
• Rubber adhesive meets adhesive requirements of GM3622, CHRYSLER MS-CC211 and DELPHI SD2-324
